Socks Machinery

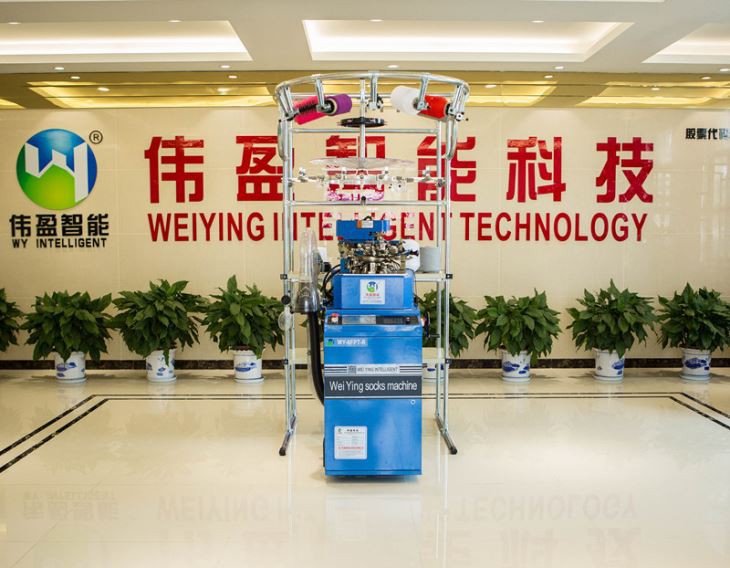

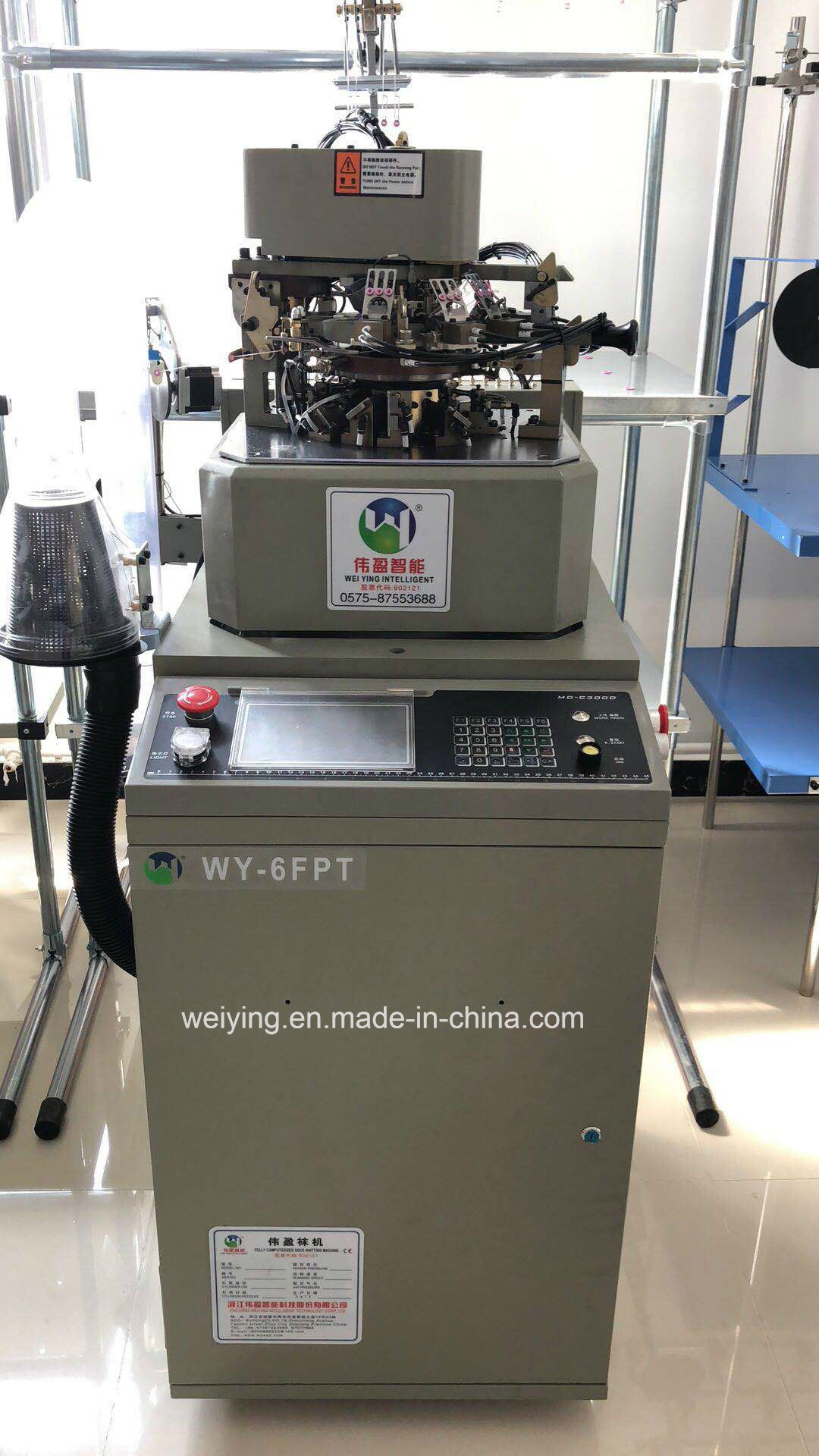

Full Computerized Selective Terry Socks Knitting Machine

Full Computerized Selective Terry Socks Knitting Machine

1. can choose one or two color elastics 2. 6 color in one line, total 13 colors in one scok. 3. selection terry function, can knit high heel, left and right foot. two colors sock heads and heel. 4. selected terry for socks toe and sock heel. 5. 2pcs bottom yarn feeder 6. can make 3D and all kinds of terry socks...


Product Description

Features:
1. Followed by a two-way push-pin press needles, rotary speed of a small, fast and efficient.
2. All actions by the pneumatic device computer control device
3. Shuttle head yarn increased from 14 to 15. Therefore one can knit socks 16 colors.
4. Automatic control by the scores of motor density, can be adjusted.
5. Power control preset in 35FDD
6. Stickers on both sides and the socks with double-layer fabric features.
7. (Continuous power available) UPS function. Power failure stopped the engine can still provide power within 2 seconds, can remember three months of work procedures; Re-started, the work can be a continuous process last.
8.16-step upgrade of the transmission.
9. Device can choose to use two sets of elastic cord, can be two different colors woven elastic.
Basic functions:
1. Each line can be woven into a main color and Five secondary colors
2. Each socks can be woven into 11 colors
3. All computer-controlled weaving system (no drum)
4. To maintain high-speed operation to improve the internal triangle
5. Stepper motor with adjustable tension and textile yarn density
6. Yarn Road and Triangle by the electronic pneumatic control
7. Maximum range of 1, 200 ranks flower model
8. Protect your computer by automatically sensing devices, electronic components
9. Automatic oil supply, automatic reading of needles, automatic reading speed
10. Pattern design system WINDOWS98/2000/XP
11. Three-phase power 220v/380V and frequency 50/60Hz
12. Main parts are interchangeable with other popular models accessories
13. Auto-zero start position
14. Stalled electricity or other reasons to save flowers modle
15. Installing UPS systems can continue to weave an instant power failure
16. Pattern type display panel


Needles parameters For ages:
Baby: 96N 108N
Children: 120N 132N
Student: 132N 144N
Female: 144N 156N
Men: 156N 168N
